Forecast UD guides

  • Sale
  • Regular price $1.18
Shipping calculated at checkout.

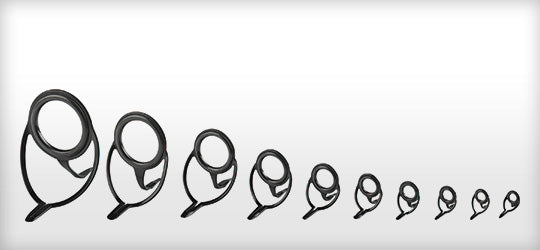

Tried and true, the ForeCast UD guides have been the industry standard frame for many years. From it’s brilliant frame design to its incredibly hard ring, these guides are perfect for the budget concerned who require the strength to deliver. Basing the frame material off of SS304 stainless steel and using either zirconium(PVD plated), zirconium, or hard aluminum oxide rings, you can count on the ForeCast UD guides time after time. ForeCast UD guides were designed for any casting rod rated for 10-25lb test line.

Featured Highlights
Pre Ground Foot
Double Foot Design
Braid Proof
Superb Corrosion Resistance
Recommended for 10-25lb. Test Line
Frame: SS304 Stainless Steel
Rings: Hard Aluminum Oxide, Zirconium(PVD Plated)


Matching Tip Tops:


ALPS PP Tip Top
ForeCast P, P Flanged Tip Top

Guide Size RING SIZE (MM OD) RING SIZE (MM ID) LENGTH (MM) LENGTH (IN) HEIGHT (MM) HEIGHT (IN) WEIGHT (GRAINS) WEIGHT (oz)
6 6 4.1 19.27 0.758 10.6 0.418 3.2 0.007
7 7 4.6 19.85 0.782 12.12 0.478 6.7 0.015
8 8 5.5 20.55 0.809 14.28 0.562 9.4 0.021
10 10 6.9 23.2 0.913 15.8 0.622 14.1 0.032
12 12 8.3 28.9 1.14 18 0.709 20.1 0.045
16 16 10.8 35.15 1.38 22.7 0.893 28.3 0.064
20 20 13.9 43.35 1.7 29.6 1.16 49.6 0.113
