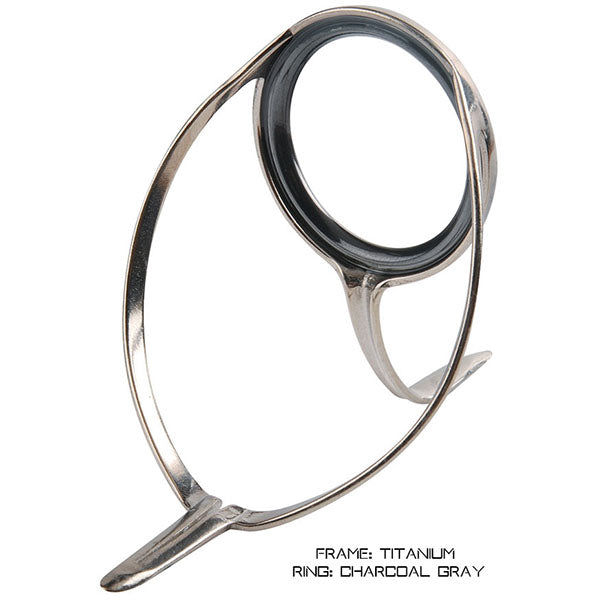

ALPS medium MXN guide in titanium


Size: 6
Price:
Sale price$6.10

Description

The ALPS medium MXN guide in titanium is the only casting guide when searching for a light to medium application. The medium MXN guides can be used in traditional casting setups as well as some switch and spey rod applications. Rated for a beefy 12-30lb test, but weighing in 40% lighter than comparable tri-legged guides, the ALPS medium MXN guides in titanium is the guide to turn. The medium MXN guides feature recessed ring design (RRD) creating a wider gluing surface between the ceramic ring and guide frame. This enhances the bond between the ring and frame while also protecting the ring from impact. The corrosion proof ALPS medium MXN guides in titanium have a unique frame that nearly eliminates all line wrap while increasing strength without adding needless weight.

GUIDE SIZES RING SIZE (MM OD) RING SIZE (MM ID) LENGTH (MM) LENGTH (IN) HEIGHT (MM) HEIGHT (IN) WEIGHT (GRAINS) WEIGHT (OZ)
6 6.00 3.70 17.43 0.686 9.54 0.376 3.2 0.007
7 7.00 4.70 18.67 0.735 11.34 0.446 3.9 0.009
8 8.00 5.50 22.96 0.904 12.19 0.480 6.6 0.015
10 10.00 6.90 27.17 1.070 15.09 0.594 10.0 0.022
12 12.00 8.25 27.68 1.090 18.15 0.715 12.9 0.029
16 16.00 10.75 35.56 1.400 22.51 0.886 24.6 0.056
20 20.00 13.90 46.78 1.840 31.11 1.220 42.5 0.097
25 25.00 17.60 53.89 2.122 41.08 1.617 68.2 0.115
30 30.00 23.44 67.30 2.650 50.29 1.980 104.7 0.239
40 40.00 29.31 89.60 3.520 63.24 2.490 180.2 0.411

Part Numbers:
